Flatbed Tool Boxes & Step Boxes: Sizing, Weight & Lock Guide

If you've ever bought a toolbox that ended up too small, couldn't handle the weight, or started giving you trouble after a season, you know how expensive the wrong choice can be. This guide covers everything you need to know about flatbed truck tool boxes, from sizing and weight capacity to locks, weather protection, and choosing the right fit for your truck.

Toolbox or Step Box — Which One Do You Need?

A toolbox sits under the frame rail and opens through a door at the front. A step box mounts on the side and also works as a step up onto the deck. You can see the full range of flatbed truck tool boxes and step boxes side by side to compare.

If you're in and out of the box several times a shift, go with the step box. The top-opening is just easier to get into than bending down to a front door, and the surface has a grip on it so you're not slipping in the rain or ice. If the stuff inside just rides along until you need it, like chains or a come-along, the toolbox makes more sense. It holds more and locks up better.

What Size Toolbox Actually Fits Between My Trailer Frame Rails?

The 18"×18"×48" model is a good choice when space is tight. Since it mounts along the side of the frame, clearance is usually determined more by available depth and ground clearance than by the distance between the frame rails. As with any underbody toolbox, it's still important to measure your truck or trailer before installation.

Here are the available toolbox and step box sizes:

Tip: Measure from the ground up to the deck before you buy anything. You need room for the box plus the mounting plate, not just the box by itself. If you're thinking about going 24" deep, check your inner rail clearance first.

How Much Weight Can the Box Itself Hold Without Sagging or Cracking?

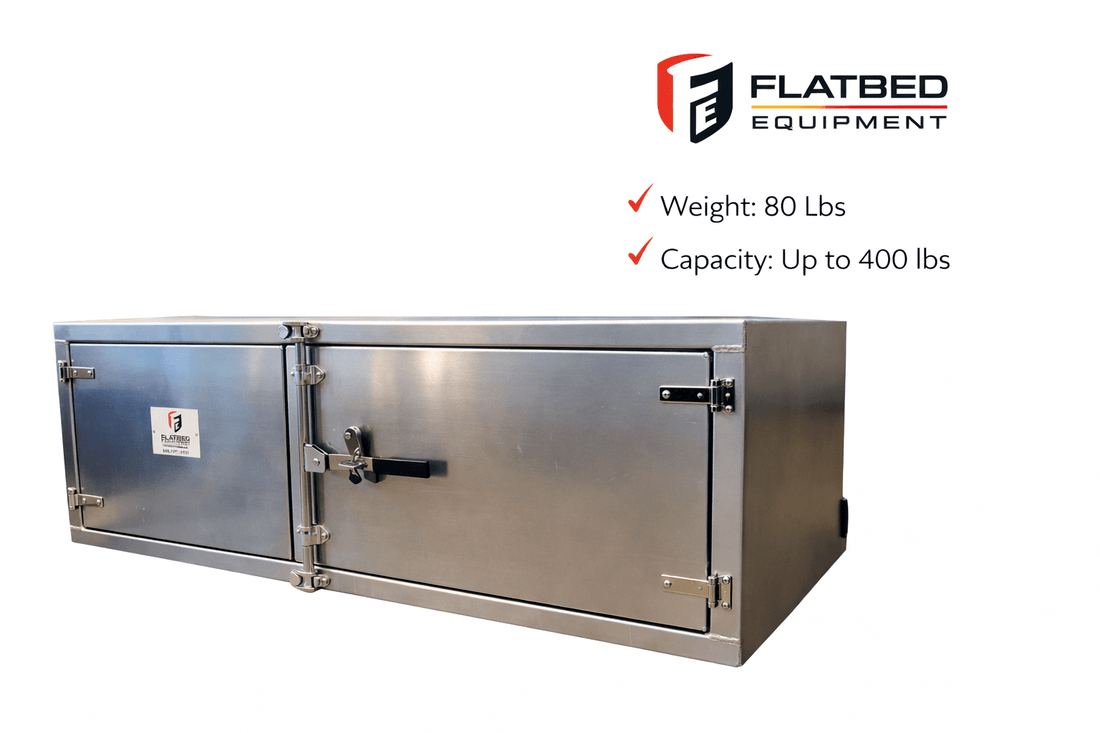

Toolbox capacity varies by model. The 48" toolbox is rated for up to 300 lbs, while the 60" toolbox models support up to 400 lbs. Step boxes are rated for up to 350 lbs. That step box number includes someone standing on it, not just whatever's stored inside. The heavy-duty aluminum toolboxes use a 3 mm (11-gauge) aluminum body with 16-gauge aluminum doors, providing the strength needed for demanding commercial use.

Will Adding a Toolbox Put Me Over Legal Axle Weight?

108 lbs is what the 24"x24"x60" (Toolbox – Heavy Duty) box weighs on its own. The larger toolbox models weigh between 80 and 108 lbs, depending on size. Where you put it matters more than what it weighs. Mount it behind the rear axle and that reading goes up. Mount it ahead of the drive axle and the weight shifts toward the steer axle instead.

Tip: If you're already cutting it close on axle weight, just weigh the truck before and after the install instead of guessing.

Which Lock Keeps Thieves Out and Which Ones Get Picked in Seconds?

The toolboxes use a keyed cam lock that locks the door at the top and bottom at once, through a rod that runs down the middle. A cover over the keyhole protects the cylinder, and the whole setup avoids the problem you get with a basic padlock and hasp, where the shackle just sits out in the open for anyone with bolt cutters.

The step boxes use a folding T-handle latch instead. It does the job of keeping the lid shut day to day, but it's not a keyed lock, so it won't stop someone who really wants in. If your truck sits overnight on a job site, throw a padlock through the hasp loop on the toolbox for extra peace of mind.

Why Do Cheap Aluminum Boxes Dent or Rust Within a Year?

Lower-quality aluminum toolboxes often use thinner material that is more prone to dents and flexing under heavy loads. That's less than half as thick as the 3mm, 11-gauge aluminum used in these aluminum flatbed tool boxes. Walls that thin dent easily the first time something shifts around inside while you're driving.

What looks like rust on the aluminum is usually the steel parts corroding instead, things like the hinges, rivets, and bolts. Corrosion often starts around hinges, fasteners, or other hardware long before the aluminum body itself shows signs of wear. Choosing quality hardware is just as important as choosing a durable aluminum body.

Will Road Salt and Weather Ruin the Hinges and Latch?

A rubber seal around the door keeps water out on both box types, so the inside stays dry through rain and slush. Where you'll actually see problems is the hinges and the latch roller, since salt and grit build up in those moving parts over a winter.

Can I Mount This Myself, or Do I Need a Welder?

You don't need a welder. These toolboxes are designed for bolt-on installation using compatible mounting brackets. Mounting brackets are typically sold separately, so it's important to verify the correct hardware for your truck or trailer before installation.

Bolt-on installation is straightforward with the correct brackets and hardware, while custom weld-on installations require additional fabrication and are generally reserved for specialized applications.

Tip: Not sure about drill points or torque specs for your trailer? Just give us a call before you order. Takes five minutes and saves you a redo later.

Whether you're putting on a flatbed storage box for the first time or replacing a flatbed tool box organizer that didn't hold up, check the same three things every time: where it mounts, what it's rated to carry, and what it's actually made of. The heavy-duty aluminum toolboxes feature a 3 mm (11-gauge) aluminum body with 16-gauge aluminum doors, weather-resistant seals, and secure locking hardware. Before ordering, verify your mounting space, capacity requirements, and the correct mounting brackets for your truck or trailer.
